    DIN 17175 Longitudinal Finned Tube

    Ask Lasest Price
    Brand Name : DELLOK
    Model Number : Longitudinal Tube
    Certification : CE. ISO,EN10204. 3.1 Cert.
    Price : N/A Contact us for details
    Payment Terms : L/C, T/T Contact us for details
    Supply Ability : 60000 meters month
    Delivery Time : Ex-work within 7 weeks on receipt of order.
    • Product Details
    • Company Profile

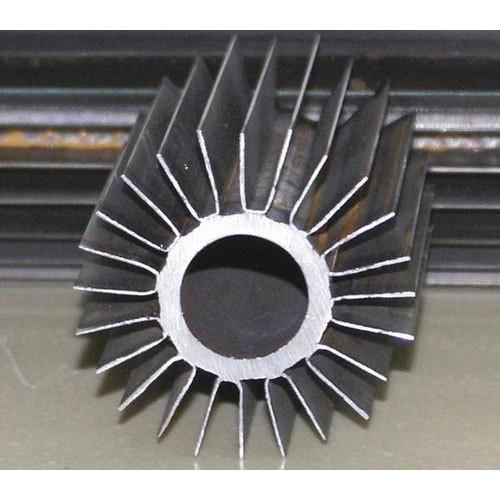

    DIN 17175 Longitudinal Finned Tube

    DIN 17175 Longitudinal Finned Tube


    DIN 17175 SMLS Carbon Steel Tube , Longitudinal HF Welded Steel Fins Tube


    Chemical Composition:

    STANDARD

    GRADE

    CHEMICAL COMPOSITION

    C

    Si

    Mn

    P,S

    Cr

    Mo

    DIN 17175

    St35.8

    ≤0.17

    0.10-0.35

    0.40-0.80

    ≤0.030

    /

    /

    St45.8

    ≤0.21

    0.10-0.35

    0.40-1.20

    ≤0.030

    /

    /

    15Mo3

    0.12-0.20

    0.10-0.35

    0.40-0.80

    ≤0.030

    /

    0.25-0.35

    13CrMo44

    0.10-0.18

    0.10-0.35

    0.40-0.70

    ≤0.030

    0.70-1.10

    0.45-0.65

    10CrMo910

    0.08-0.15

    ≤0.50

    0.40-0.70

    ≤0.030

    2.00-2.50

    0.90-1.20



    Quick Detail


    General Specifications of Longitudinal Fin Tube

    Tube OD: 19mm min.Tube Length: 18 meters max.
    Fin number: 2/ 4/ 8/ 16/ 18/ 32/ 36 piece per row
    Number of fins: 16/20/24/32/40


    General Longitudinal Fin Tube Production Capacity

    Welding Facility: 1 finning machine;
    Daily production capacity up to 500 Meters;
    Fin type: U fins,perforated,twist…


    Description:

    Manufacturing process: The longitudinal I/L or U shape fins are welded onto the core plain tubes by resistance welding or welding with filler matal (Spot welded).

    1. U bends tubes with longitudinal fins and fintube coils are avaiable for requesting.

    2. Longitudinal fins types: one-piece shape, standard U bent shape, cut & twist, perforated type etc…

    3. The fin channels are welded to the tubes in opposite pairs. Fin height, number of fins and fin thickness can be specified.

    4. Fins can be applied to either OD tube or NB pipe.


    Applications:

    The longitudinal finned tubes are wildely used in following fields.

    1. Chemical- ,petrochemical-,oil-, and power indudtry

    2. Heat exchanges

    3. Fired heaters

    4. Gas coolers and heaters

    5. Tank heaters.


    Specifications:

    Materials of tubes: Carbon Steel(A106/A179/A192/A210)

    Stainless Steel(TP304/TP304L ,TP316/TP316L)

    Alloy Steel (T11/T22)

    Fins Materials: Carbon Steel,

    Stainless Steel(TP304/TP304L,TP316/TP316L, TP409/TP410)

    Bare tube size: OD 19.05mm-OD60mm

    Fin number: 2/ 4/ 8/ 16/ 18/ 32/ 36 piece per row

    Number of fins: 16/20/24/32/40
