    DELLOK Aluminum 1100 Elliptical Nickel Based Brazed Spiral Finned Tube

    Ask Lasest Price
    Brand Name : DELLOK Yonghui
    Model Number : Elliptical Finned Tube
    Certification : CE
    Price : $10 - 500 /Piece/Pieces
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 10000 Piece Monthly
    Delivery Time : 1-3weeks
    • Product Details
    • Company Profile

    DELLOK Aluminum 1100 Elliptical Nickel Based Brazed Spiral Finned Tube

    DELLOK Aluminum 1100 Elliptical Nickel-based Brazed Finned Tube


    About Us


    DELLOK (YONGHUI RADIATING PIPE MANUFACTURING CO.,LTD.) was established in 2002, which is located in Jiangsu, China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above. Quality is the theme of eternal pursuit of winner -Production workshop- Meticulous works, standardized management system and systematic quality assurance are Dellok(YONGHUI)'s best commitment to quality. In Dellok(YONGHUI), the quality control is not only the detection of the final process, but throughout the entire production process. We implement a set of quality control and assurance systems. Each batch of pipes is sampled and tested, and records are kept as a quality guarantee for the final product.


    Elliptical Finned Tube Properties:


    · Optimum functionality based range of Finned Tubes Elliptical Type

    · Provides for optimum corrosion protection on base tube

    · Optimum tubing designs that provides for easy to clean interface

    · Continuous outer sleeve that ensures no galvanic corrosion

    ·Tubes can be made available in different material finishes like titanium, stainless steel, aluminum and other metal choices

    · Tubes designed under high mechanical tension bonding process that provides for optimum usage interface

    · Finned tubes made available in different diameters, thickness and finishes

    · Can also be made available in different material specification choices

    · Tubing can be applied without changing flow arralgement, shell size or need of repositioning of piping

    · Suitable for enhancing performance of heat exchangers or for reducing its size

    · Designed to enhance overall heat transfer surface area

    · Comes with optimum fin-to-tube bonding that provides for exceptional usage efficiency

    · Comes with optimum corrosion protection on base tube

    · With outer sleeve available in continuous finish there is also no galvanic corrosion

    · Easy to clean and maintain interface

    · Assists in enhancing thermal performance of Heat Exchangers

    · Provides for high rate of quicker dissipation as well as optimum heat-transfer coefficient using equipment fitted with Fin Tubes

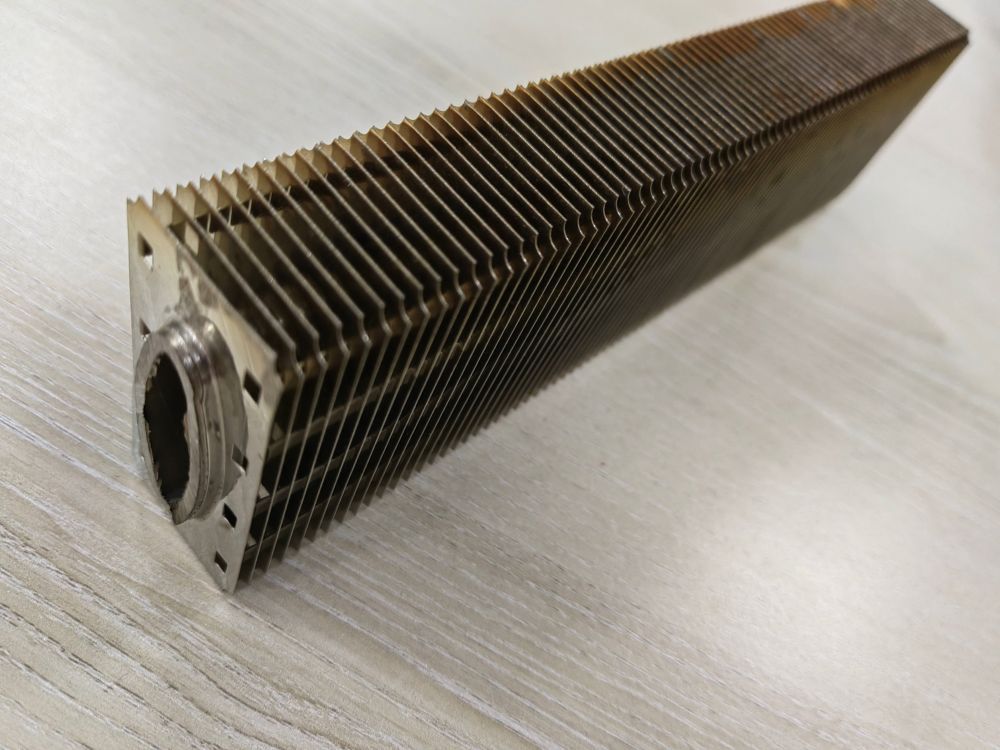

    Elliptical Finned Tube

    Elliptical Finned Tube(Oval Steel Tube) Product Description:


    Elliptical Fin Tube is by setting up rectangular or square-shaped fins over Oval tube.This fin tubes (pipes) maximizes the performance of heat exchangers and minimizes the loss of heat transfer and pressure.

    Surface Protection:

    Both bare ends shall be zinc or aluminum metallized by electrospray arc system coating.


    Oval Tube Aluminum


    Elliptical Finned Tube(Oval Tube Aluminum) Manufacturing Process:


    An oval seamless tube is used as the base tube, and the finned tube is spirally wound with aluminum fin tape or copper fin tape under tension and tightly wound on the outer surface of the base tube.


    Oval Steel Tube


    Elliptical Finned Tube(Oval Steel Tubing) Advantages:


    The reflux zone and windward area is much smaller, reduce the hydromechanics on the air side, then reduce the energy consumption.

    Inside the Heat Exchanger equipment, oval tube bundle is more compact than circular tube bundle, so the heat exchanger has smaller volume and is with lower cost.

    The fins are not sensitive to typical mechanical loads, for example hailstorm or walk on the bundles.

    The rectangular fins are with high strength, protecting the base tube from fracture in winter, prolonging the tube life-span.


    Fin Tube


    Elliptical Finned Tube(Stainless Steel Oval Tube) Applications:


    Those are applied for Heat Exchanger Field, Oil refineries, Petrochemical industry, Ship-building, Power Plant,

    Refrigerator, Steam Engine and Evaporator.


    Fin Tube

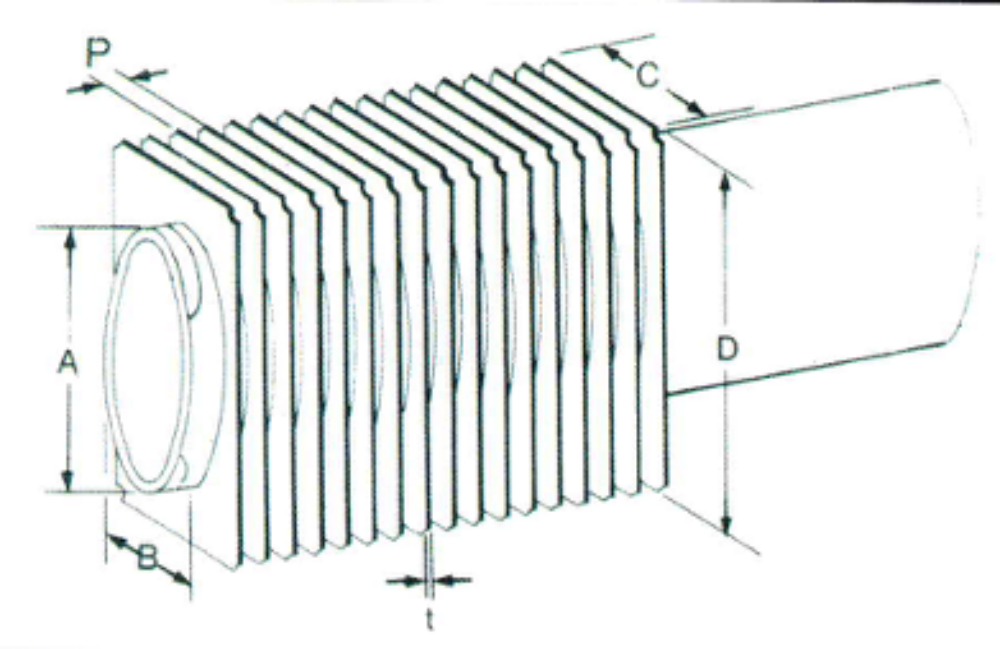

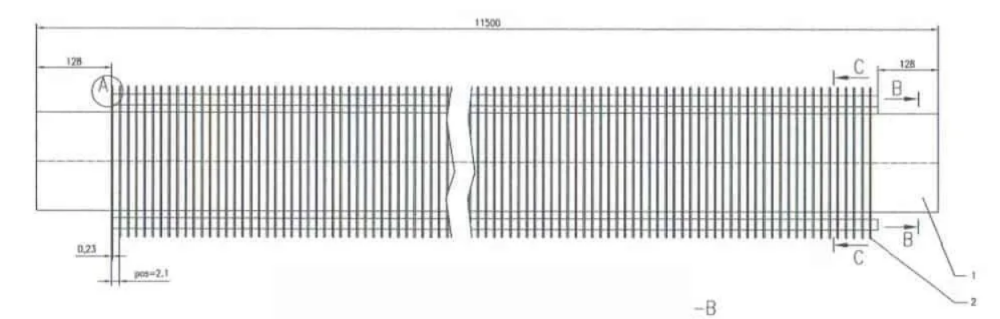

    Elliptical Finned Tube Specifications:



    Elliptical Finned Tube


    Product Categories : Elliptical Finned Tube

    Product Description

    Elliptical Finned Tube Material Details:


    Tube material:

    1. Carbon steel: A179, A192, SA210 Gr A1/C, A106 Gr B

    2. Stainless steel: TP304/304L, TP316/TP316L

    3. Copper: UNS12200/UNS14200/UNS70600, CuNi70/30, CuNi 90/10

    4. Titanium: B338 Gr 2

    Fin material:

    1. Aluminum (Alu.1100, Alu.1060)

    2. Copper.

    3. Steel

    Fin type: Solid plain


    Elliptical Finned Tube


    Manufacturing Process:


    An oval seamless tube is used as the base tube, and the finned tube is spirally wound with aluminum fin tape or copper fin tape under tension and tightly wound on the outer surface of the base tube.Elliptical Finned Tube is combined with two different materials.


    Oval Tube Aluminium


    Advantages:


    The reflux zone and windward area is much smaller, reduce the hydromechanics on the air side, then reduce the energy consumption Inside the heat exchanger equipment, oval tube bundle is more compact than circular tube bundle, so the heat exchanger has smaller volume and is with lower cost.The fins are not sensitive to typical mechanical loads, for example hailstorm or walk on the bundles.The rectangular fins are with high strength, protecting the base tube from fracture in winter, prolonging the tube life-span.


    Oval Steel Tubing


    FAQ


    Q: What is your the lead time for production?

    A: Generally Sample needs 1-3 days, mass production needs 15-30 days, also depends on your request.

    Q: What is the warranty for your products?

    A :We provide one year warranty for the products.

    Q: What payment terms do you accept?

    A :Trade assurance,TT,Western Union.

    Q: What are the modes of transportation of machines?

    A: Air freight, sea freight express delivery, etc. We will choose the most suitable transportation method according to your requirements.
