API 5L K55 N80 L80 P110 Btc Stc Ltc R3 Seamless Pipes Carbon Steel Pipe

Ask Lasest Price
Brand Name :	Dellok Yonghui
Certification :	API, CE,
Model Number :	Non-Alloy
Price :	1 - 99 tons $599.00 100 - 499 tons $539.00 >= 500 tons $499.00
Supply Ability :	1000000 Ton/Tons per Year
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

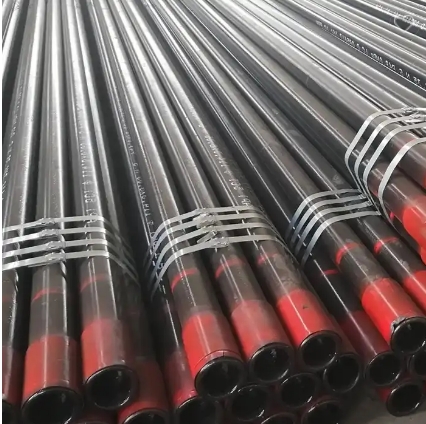

API 5L K55 N80 L80 P110 Btc Stc Ltc R3 Seamless Pipes Carbon Steel Pipe

Dellok API 5L K55 N80 L80 P110 Btc Stc Ltc R3 Seamless Oil Casing Carbon Steel Pipe FOB Reference Pri

About Us

Dellok Yonghui company In order to survive with quality, enterprises regard reputation as life, established a perfect after-sales service system, equipped with complete production and testing equipment, and a number of professional and technical personnel with pioneering and innovative spirit, so as to ensure the excellent quality of our products.Oil casing is a kind of large diameter pipe to hold oil and gas well walls or holes. Casing is inserted into the well hole and secured with cement to prevent the well from separating the rock and collapsing, and to keep the drilling mud circulating to facilitate drilling and production.The failure loss of oil pipe is huge, and its safety, reliability and service life are of great importance to the oil industry.

API 5CT K55 J55 L80 N80 Premium Connection Casing For Oil Pipe

Product Name	API 5CT K55 Premium Connection Casing For Oil Pipe
Material	API 5ct J55 K55 N80 L80 API 5L x42 x52 x60 x70 ; H40 C95 N80I N80 Q C-90 T-95 P110 Q-125
Size
Standard	Size 1.050" to 20" Outside Diameter 26.67 mm to 508 mm
Certificates	API 5L , API 5CT API 5DP ASTM A106
Wall thickness	API5L, ISO 9001:2008,SGS, BV,CCIC
Surface Treatment	2.87~16.13 MM LB/FT
Marking	black paint, varnish, oil, galvanized, anti corrosion coatings
Pipe Ends	Standard marking, or according to your request. Marking Method: Spray white paint
Pipe Length	LTC STC EUE NUE VM XC NPT
Packaging	1. R1: 4.88~7.62M. 2. R2:7.62~10.36M 3. R3:10.36~14.63M
Test	Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases.
Advantages	Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.
	1.Reasonable price with excellent quality2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from port.

Size

Related Standard & Specification: API 5CT, ISO 11960, API 5B, GOST

Related Grade: J55, K55, N80, L80-1, L80-9Cr, L80-13Cr, P110, Q125, K55 D10, L80 D10.

Available Approved Marine: ABS / BV / LR / DNV / GL / KR, EN10204 3.2 MTC

Special Service: Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156

Produce Process: Hot Rolled, Cold Drawn, Hot Expanded.

Accessories: Pup Joint, Coupling (Coupling Stock), Blast Joint, Crossover etc.

Connection: API connection and Premium connection, like TPCQ, HSM etc.

Size

Related Standard & Specification: API 5CT, ISO 11960, API 5B, GOST

Related Grade: J55, K55, N80, L80-1, L80-9Cr, L80-13Cr, P110, Q125, K55 D10, L80 D10.

Available Approved Marine: ABS / BV / LR / DNV / GL / KR, EN10204 3.2 MTC

Special Service: Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156

Produce Process: Hot Rolled, Cold Drawn, Hot Expanded.

Accessories: Pup Joint, Coupling (Coupling Stock), Blast Joint, Crossover etc.

Connection: API connection and Premium connection, like TPCQ, HSM etc.

API Casing
Size		Grade and Connection									Standards
OD mm (in)	WT/mm	H40	J55 K55	M65	L80-1 R95	N80-1 N80Q	C90 T95	C110	P110	Q125	Standards
114.3(4.5')	5.21	S	S	S							API SPEC 5CT/ISO11960
	5.69		S/B	S/B
	6.35		S/L/B	L/B	L/B	L/B	L/B		L/B
	7.37			L/B	L/B	L/B	L/B		L/B
	8.56								L/B	L/B
127(5')	5.59		S	S
	6.43		S/L/B	S/L/B
	7.52		S/L/B	L/B	S/L/B	S/L/B	L/B		S/L/B
	9.19			L/B	S/L/B	S/L/B	L/B		S/L/B	L/B
	11.1			L/B	L/B	L/B	L/B		L/B	L/B
	12.14				L/B	L/B	L/B		L/B	L/B
	12.7				L/B	L/B	L/B		L/B	L/B
139.7(5.5')	6.2	S	S	S
	6.98		S/L/B	S/L/B
	7.72		S/L/B	L/B	S/L/B	S/L/B	L/B		S/L/B
	9.17			L/B	S/L/B	S/L/B	L/B		S/L/B
	10.54			L/B	S/L/B	S/L/B	L/B		S/L/B	S/L/B
168.28(6.625')	7.32	S	S/L/B	S/L/B
	8.94		S/L/B	L/B	S/L/B	S/L/B	L/B		S/L/B
	10.59			L/B	S/L/B	S/L/B	L/B		S/L/B
	12.06				S/L/B	S/L/B	L/B		S/L/B	L/B
177.8(7')	6.91	S	S	S
	8.05		S/L/B	L/B	S/L/B	S/L/B	L/B
	9.19			L/B	S/L/B	S/L/B	L/B		S/L/B
	10.36			L/B	S/L/B	S/L/B	L/B		S/L/B
	11.51			L/B	S/L/B	S/L/B	L/B		S/L/B
	12.65				S/L/B	S/L/B	L/B		S/L/B	S/L/B
	13.72				S/L/B	S/L/B	L/B		S/L/B	S/L/B
193.68(7.625')	8.33		S/L/B	S/L/B	L/B	L/B	L/B
	9.52			L/B	L/B	L/B	L/B		L/B
	10.92			L/B	L/B	L/B	L/B		L/B
	12.7				L/B	L/B	L/B		L/B	L/B
	14.27				L/B	L/B	L/B		L/B	L/B
	15.11				L/B	L/B	L/B		L/B	L/B
	15.88				L/B	L/B	L/B		L/B	L/B
219.08(8.625')	6.71		S	S	S
	7.72	S	S/L/B	S
	8.94	S	S/L/B	S/L/B
	10.16			S/L/B	L/B	L/B	L/B		L/B
	11.43			L/B	L/B	L/B	L/B		L/B
	12.7				L/B	L/B	L/B		L/B
	14.15				L/B	L/B	L/B		L/B	L/B
244.48(9.625')	8.94	S	S/L/B	S/L/B
	10.03		S/L/B	S/L/B	L/B	L/B	L/B		L/B
	11.05			L/B	L/B	L/B	L/B		L/B
	11.99			L/B	L/B	L/B	L/B		L/B	L/B
	13.84				L/B	L/B	L/B		L/B	L/B
	15.11				L/B	L/B	L/B		L/B
273.05(10.75')	8.89	S/B		S/B
	10.16	S/B	S/B	S/B
	11.43	S/B	S/B	S/B	S/B	S/B	S/B		S/B
	12.57				S/B	S/B	S/B		S/B
	13.84						S/B		S/B	S/B
	15.11						S/B		S/B	S/B
298.45(11.75')	9.65
	10.92
	12.19				S/B				S/B
	13.06				S/B				S/B	S/B
339.72(13.375')	8.38	S
	9.65		S/B	S/B
	10.92		S/B	S/B
	12.19			S/B	S/B	S/B	S/B		S/B
	13.06				S/B	S/B	S/B		S/B	S/B
406.4(16')	16.66
508(20')	16.13		S/L/B
Note: S-SC;L-LC;B-BC.

API Tubing
Size		Grade and Connection							Standards
OD mm (in)	WT/mm	H40	J55	L80-1 R95	N80-1 N80Q	C90	T95	P110	Standards
42.16(1.66')	3.18								API SPEC 5CT/ISO11960
	3.56	N/U	N/U	N/U	N/U	N/U	N/U
	4.85	U	U	U	U	U	U	U
48.26(1.9')	3.18	N/U	N/U	N/U	N/U	N/U	N/U
	3.68	N/U	N/U	N/U	N/U	N/U	N/U
	5.08	U	U	U	U	U	U	U
	6.35
	7.62
60.32(2.375')	4.24
	4.83
	6.45
	7.49
	8.53
73.02(2.875')	5.51	N/U	N/U	N/U	N/U	N/U	N/U	N/U
	7.01			N/U	N/U	N/U	N/U	N/U
	7.82			N/U	N/U	N/U	N/U	N/U
	8.64				U			U
	9.96
	11.18	U	N	N	N	N	N
88.9(3.5')	5.49
	6.45	N/U	N/U	N/U	N/U	N/U	N/U	N/U
	7.34	N	N	N	N	N	N
	9.52			N/U	N/U	N/U	N/U	N/U
	10.92
	12.09
	13.46
101.6(4')	5.74	N	N	N	N	N	N	N
	6.65	U	U	U	U	U	U	U
	8.38
	10.54
	12.7
	15.49
114.3(4.5')	6.88	N/U	N/U	N/U	N/U	N/U	N/U	N/U
	8.56
	9.65
	10.92
	12.7
	14.22
	16
Note: N-NU; U-EU.

Chemical Analysis(%) For Part Standard
Standard	Class	Grade	Type	C		Mn		Mo		Cr		Ni	Cu	P	S	Si
Standard	Class	Grade	Type	min	max	min	max	min	max	min	max	max	max	max	max	max
	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
API 5CT	1	H40	-	-	-	-	-	-	-	-	-		-	0.03	0.03	-
		J55	-	-	-	-	-	-	-	-	-		-	0.03	0.03	-
		K55	-	-	-	-	-	-	-	-	-		-	0.03	0.03	-
		N80	1	-	-	-	-	-	-	-	-		-	0.03	0.03	-
		N80	Q	-	-	-	-	-	-	-	-		-	0.03	0.03	-
	2	M65	-	-	-	-	-	-	-	-	-		-	0.03	0.03	-
		L80	1	-	0.43	-	1.9	-	-	-	-	0.25	0.35	0.03	0.03	0.45
		L80	9Cr	-	0.15	0.3	0.6	0.9	1.1	8	10	0.5	0.25	0.02	0.01	1
		L80	13Cr	0.15	0.22	0.25	1	-	-	12	14	0.5	0.25	0.02	0.01	1
		C90	1	-	0.35	-	1.2	0.25	0.85	-	1.5	0.99	-	0.02	0.01	-
		C90	2	-	0.5	-	1.9	-	NL	-	NL	0.99	-	0.03	0.01	-
		C95	-	-	0.45	-	1.9	-	-	-	-	-	-	0.03	0.03	0.45
		T95	1	-	0.35	-	1.2	0.25	0.85	0.4	1.5	0.99	-	0.02	0.01	-
		T95	2	-	0.5	-	1.9	-	-	-	-	0.99	-	0.03	0.01	-
	3	P110		-	-	-	-	-	-	-	-		-	0.03	0.03	-
	4	Q125	1	-	0.35	-	1.35	-	0.85	-	1.5	0.99	-	0.02	0.01	-
		Q125	2	-	0.35	-	1	-	NL	-	NL	0.99	-	0.02	0.02	-
		Q125	3	-	0.5	-	1.9	-	NL	-	NL	0.99	-	0.03	0.01	-
		Q125	4	-	0.5	-	1.9	-	NL	-	NL	0.99	-	0.03	0.02	-

Tensile Property For Part Standard
Standard	Class	Grade	Type	Elongation(%)	Yield Strengh(Mpa)		Tensile Strengh(Mpa)	Hardness(Max)		Required WT	Allowed Tolerance of Hardness
					Min	Max	Min	HRC	HBW/-	mm	HRC
	1	2	3	4	5	6	7	8	9	10	11
API 5CT	1	H40		0.5	276	552	414	-	-	-	-
		J55	-	0.5	379	552	517	-	-	-	-
		K55	-	0.5	379	552	655	-	-	-	-
		N80	1	0.5	552	758	689	-	-	-	-
		N80	Q	0.5	552	758	689	-	-	-	-
	2	M65	-	0.5	448	586	586	22	235	-	-
		L80	1	0.5	552	655	655	23	241	-	-
		L80	9Cr	0.5	552	655	655	23	241	-	-
		L80	13Cr	0.5	552	655	655	23	241	-	-
		C90	1,2	0.5	621	724	689	25.4	255	≤12.70	3
		C90	1,2	0.5	621	724	689	25.4	255	12.71~19.04	4
		C90	1,2	0.5	621	724	689	25.4	255	19.05~25.39	5
		C90	1,2	0.5	621	724	689	25.4	255	≥25.40	6
		C95	-	0.5	655	758	724	-	-	-	-
		T95	1,2	0.5	655	758	724	25.4	255	≤12.70	3
		T95	1,2	0.5	655	758	724	25.4	255	12.71~19.04	4
		T95	1,2	0.5	655	758	724	25.4	255	19.05~25.39	5
		T95	1,2	0.5	655	758	724	25.4	255	≥25.40	6
	3	P110	-	0.6	758	965	862	-	-	-	-
	4	Q125	1~4	0.65	862	1034	931	-	-	≤12.70	3
		Q125	1~4	0.65	862	1034	931	-	-	12.71~19.04	4
		Q125	1~4	0.65	862	1034	931	-	-	≥19.05	5

FAQ

Q:What is API Certification?

A: API Certification is an acronym for the American Petroleum Institute. Founded in 1919, API Certification is the first national business association in the United States and one of the earliest and most successful standard-setting

chambers of commerce worldwide.

Q:When can it be shipped?

A:It can be shipped in one to two weeks.
