DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube

Dellok Yonghui Radiating Pipe Manufacturing Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube from wholesalers

    Buy cheap DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube from wholesalers
    • Buy cheap DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube from wholesalers
    • Buy cheap DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube from wholesalers
    • Buy cheap DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube from wholesalers
    • Buy cheap DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube from wholesalers

    DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube

    Ask Lasest Price
    Brand Name : DELLOK
    Model Number : Flat tube
    Certification : CE. ISO,EN10204. 3.1 Cert.
    Price : N/A Contact us for details
    Payment Terms : L/C, T/T Contact us for details
    Supply Ability : 60000 meters month
    Delivery Time : Ex-work within 4 or 5 weeks after order
    • Product Details
    • Company Profile

    DELLOK Boiler Wall Thickness 0.8mm A210 Carbon Steel Fin Tube

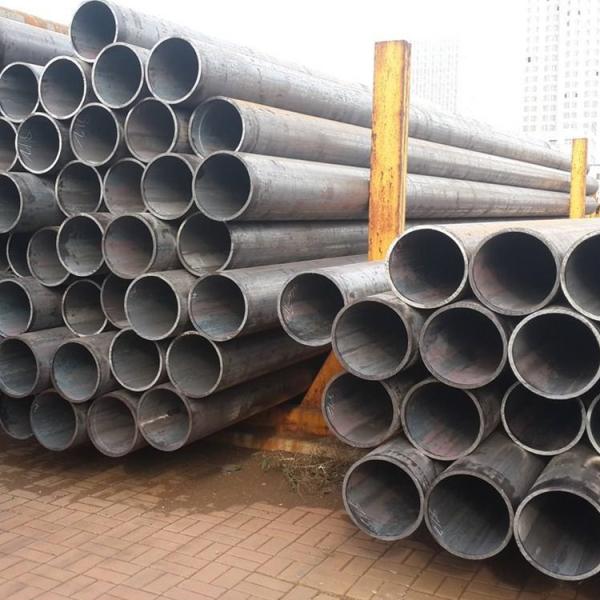

    Boiler Wall Thickness 0.8mm A210 Carbon Steel Seamless Tube


    ASTM A210 Seamless Carbon Steel Tube , Boiler Steel Pipe Wall Thickness 0.8mm - 15mm

    Description:
    ASTM A210 is the standard covers seamless medium-carbon steel boiler and superheater tubes.ASTM A210 also covers minimum-wall-thickness, tubing sizes, boiler flues including safe ends, arch and stay tubes. ASTM A210 provides tensile and hardness properties but only applicable to certain size limitations. Material manufacturing shall be killed. Tubes shall be made by seamless process, marked as either hot-finished or cold-finished. Surface condition shall be specifically stated in the order. Chemical composition shall conform to the requirements. Elemental composition other than listed here shall not be permitted. Tension test, flattening test, flaring test, hardness test, hydrostatic or nondestructive electric test shall be made on specimens. Superheater tubes shall be formed without defects and shall withstand expansion, beading, forging, welding, and bending.

    ASTM A210/A210M Seamless Medium-Carbon Steel Boiler Tubes
    Seamless Medium-Carbon Steel Boiler and Superheater Tubes

    Quick Detail:

    Standard: ASTM A210/A210M (ASME SA210/SA210M)
    Seamless Medium-Carbon Steel Boiler and Superheater Tubes
    Size:(mm)
    Out Dimensions: 12.7mm-114.3mm
    Wall Thickness: 0.8mm-15mm
    Length: 5-25mm

    Applications:
    It is used for boiler and boiler flue tubes. Including safe end, vault and supporting tube and super heater min wall thickness seamless medium--carbon steel tube

    Chemical Requirements:

    STANDARDGRADECHEMICAL COMPOSITION
    CSiMnPSCrMoCuNiV
    ASTM A210A-1≤0.27≥0.10≤0.93≤0.035≤0.035
    C≤0.35≥0.100.291.06≤0.035≤0.035


    Mechanical Properties:

    GradeYield Strength (Mpa)Tensile Strength (Mpa)Elongation (%)
    A-1≥255≥41530
    C≥275≥48530


    Wall Thickness Tolerance


    ASME SA-210
    ODWTWT Tolerance
    <=38.1/+20%,-0%
    >38.1/+20%,-0%

    Our Service:
    1. Inquiry-Professional quotation, or send inquiry item more details, we start contact more details
    2. Confirm the price, lead time, payment term etc
    3. Our sales send the Proforma Invoice with our seal, or you order online to us
    4. Customer make the payment for deposit and send us Bank receipt
    5. Initial Production Stage-Inform the clients that we have got the payment, and will make the samples according to your request, send you photos or samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time
    6. Middle Production-send photos to show the production line which you can see you products. Confirm the estimated delivery time again.
    7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection
    8. Clients make payment for balance and ship goods, inform the tracking number and check the status for clients
    9. Order can be say "finish" when you receive the goods and satisfy with them
    10. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better
