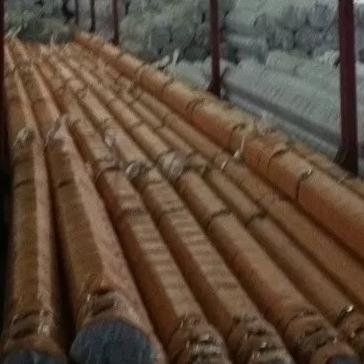

    DELLOK Thin Wall DIN 17458 0.5mm 316 Stainless Steel Seamless Tubes

    Ask Lasest Price
    Brand Name : DELLOK
    Model Number : Flat tube
    Certification : CE. ISO,EN10204. 3.1 Cert.
    Price : N/A Contact us for details
    Payment Terms : L/C, T/T Contact us for details
    Supply Ability : 60000 meters month
    Delivery Time : EX-WORK within 4~5 weeks after order
    • Product Details
    • Company Profile

    DELLOK Thin Wall DIN 17458 0.5mm 316 Stainless Steel Seamless Tubes

    Thin Wall Seamless DIN 17458 0.5mm 316 Stainless Steel Tubing


    Pickled / Bright Annealed Stainless Steel Seamless Tube , ASME SA213 TP316 / 316L


    Specification:

    ASME SA213/A213: Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.

    ASTM A249 / A249M: Welded Austenitic Steel Boiler,Superheater Heat-Exchanger & Condenser Tubes.


    More Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...


    American Standard

    Austenitic Steel:

    TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

    Duplex Steel :

    S32101,S32205,S31803,S32304,S32750, S32760

    Others:TP405,TP409, TP410, TP430, TP439,...

    Europen Standard1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
    Russia Standard08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

    Size Range:

    ProductionOutside DiameterWall Thickness
    BoilerTube6.00mm to 101.6mm0.5mm to 8mm

    Final Finishing

    Solution Annealed & Pickled/Bright Annealed.


    Type of Tubes:

    U-bend & Straight.


    Some of the quality tests carried out by us includes:

    Corrosion TestConducted only when specially requested by the client
    Chemical AnalysisTest done as per required quality standards
    Destructive / Mechanical TestingTensile | Hardness | Flattening | Flare | Flange
    Reverse-bend and Re. flat testsCarried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
    Eddy Current TestingDone to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
    Hydrostatic Testing100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
    Air Under Pressure TestTo check any evidence of air leakage
    Visual InspectionAfter passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


    Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

    • Eddy Current Testing
    • O.P Testing
    • Radiography Testing
    • Corrosion Testing
    • Micro Testing
    • Macro Testing
    • IGC Testing
    • Ultrasonic testing
    • Liquid Penetrate testing

    Quality DELLOK Thin Wall DIN 17458 0.5mm 316 Stainless Steel Seamless Tubes for sale
