    DELLOKHFW Pipe for Heat Exchanger 16.5mm Crimped Fin Tube OD19X1.25WT LL Type Fins Radiator Tube with Spacer Box A179 SM

    Ask Lasest Price
    Brand Name : DELLOK Yonghui
    Model Number : High Frequency Weld (HFW,Solid)Fin Tube
    Certification : CE. ISO,EN10204. 3.1 Cert.
    Price : 1 - 1 pieces $152.10 ;>= 2 pieces $132.25
    Payment Terms : L/C, T/T Contact us for details
    Supply Ability : 60000 meters month
    Delivery Time : within 15days
    • Product Details
    • Company Profile

    DELLOKHFW Pipe for Heat Exchanger 16.5mm Crimped Fin Tube OD19X1.25WT LL Type Fins Radiator Tube with Spacer Box A179 SM

    DELLOK HFW Pipe for Heat Exchanger 16.5mm Crimped Fin Tube OD19X1.25WT LL Type Fins Radiator Tube with Spacer Box A179 SM


    Dellok Yonghui Brochure.pdf


    Quick Detail:


    General specifications of L Type fin tubes


    Tube Length : No limit.
    Fin Height : 16.5 mm max.
    Fin Thickness : generally 0.4mm ~0.6mm
    Fin Pitch : 2.1 mm (12FPI) min.

    Type L production capacity

    Finning Facility: 7 finning machines;Daily capacity up to 5000 meters;

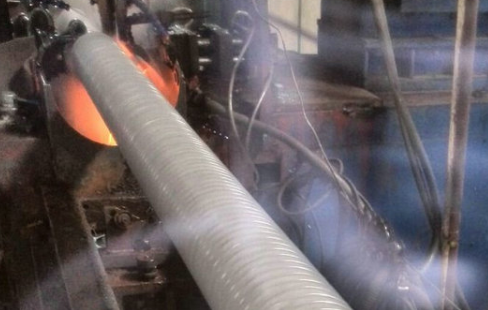

    LL Type Finned Tube (LL-Wound Fin Tubes) process: Fins made by wrapping base tube with fin strip, as in the case of type ‘L’ Tension Wound Type.


    Introduction:


    The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface. All the goods shall be Zinc or Aluminum metalized applied by an electro spray arc system coating, and when all tubes ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of L Type Tension Wound Finned Tube, it will be delivered. Besides, we provide Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).


    Acceptance Criteria:


    API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).


    Packing:


    The desiccants are put into each package for continental transportation as well.


    pecifications:


    LL Type Tension Wound Tube is combined with two different materials.


    Competitive Advantage:

    1. We have more than 10,000 square meters workshop, including 7 finning machines, daily capacity up to 5,000 Meters.

    2. The finning machines are designed and assembled by ourselves and we can offer you finning machines and all accessories etc...

    3. This method of manufacturing overlapped LL type enables us to place the finning on a very thin-walled tube with is particularly desirable when using high value alloys (titanium, stainless, copper, nickel).

    4. The LL TYPE fin tubes can withstand a temperature of up to 170°C and provide a better corrosion protection by overlapping the feet of the L shapes. Maximum operating temperature: 170°C


    Our Service

    1

    Inquiry-Professional quotation, or send inquiry item more details, we start contact more details

    2

    Confirm the price, lead time, payment term etc

    3

    Our sales send the Proforma Invoice with our seal, or you order online to us

    4

    Customer make the payment for deposit and send us Bank receipt

    5

    Intial Production Stage-Inform the clients that we habe got the payment, and will make the samples according to your request, send you photos or samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time

    6

    Middle Production-send photos to show the production line which you can see you products. Confirm the estimated delivery time again.

    7

    End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection

    8

    Clients make payment for balance and ship goods, inform the tracking number and check the status for clients

    9

    Order can be say "finish" when you receive the goods and satify with them

    10

    Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better
