    DELLOK 0.4mm Tube Finning Machine

    Ask Lasest Price
    Brand Name : DELLOK
    Model Number : Reliance-1118
    Certification : CE. ISO,EN10204. 3.1 Cert.
    Price : N/A Contact us for details
    Payment Terms : L/C, T/T Contact us for details
    Supply Ability : 60000 meters month
    Delivery Time : Ex-work within 2 weeks on receipt of order.
    • Product Details
    • Company Profile

    DELLOK 0.4mm Tube Finning Machine

    0.4mm Tube Finning Machine


    Name:

    Extruded Fin Tubes Fining Machine

    Tube Material:

    Carbon Steel, Stainless Steel, Copper Etc...

    Fin Material:

    Aluminum 1060,1100,6063...

    Tube OD:

    50.8mm (Max.)

    Tube Length:

    No Limit

    Fin Height:

    16mm (Max.)

    Fin Average Thickness:

    0.4mm

    Fin Pitch:

    13FPI(~1.9mm Min.)

    Process:

    Extrusion

    Fin Type:

    Solid Fins Or Serrated Fins

    Voltage:

    415V / 50HZ (as Per Client's Requirement)

    Brand:

    RELIANCE

    Package:

    Plywood Box (export Packing)

    Training:

    Supplier's Site OPERATION Training


    fining tubes machine 11 fin per inch extruded type,aluminum fins


    Details

    Name

    Extruded Fin Tube Machine

    Brand

    Mode No

    Reliance/ Mode No:1118

    Tube Material

    1. Seamless steel tubes

    (Carbon Steel,stainless steel,alloy steel)

    2. Welded steel tubes

    (Carbon Steel ,stainless steel)

    3. Copper/Brass/Brone

    4. Titanium

    5. Aluminum alloy

    Popular Fins

    Material

    Alu.1060

    Alu. 1100

    Alu. 6063



    1. General Description of Extruded finning machine.

    a. Extrusion machine mode No: Reliance-1118(Our internal design No.)

    b. Extrusion equipment power output: 380V/50HZ (Chinese Standard).

    c. The motors of export extrusion finning machine are supplied upon clients’ requests.


    2. Machine characters

    One complete set of extrusion low fin tube Machine is consists

    a. Finning head (Not including input and output racks)

    b. Cooling systems for finning head

    c. One FREE group is installed into machine before ex-work.

    d. Drawing of finning input racks and output racks

    e. Technical know-how(Operation Manual in English)

    f. Operation training: Reliance's site

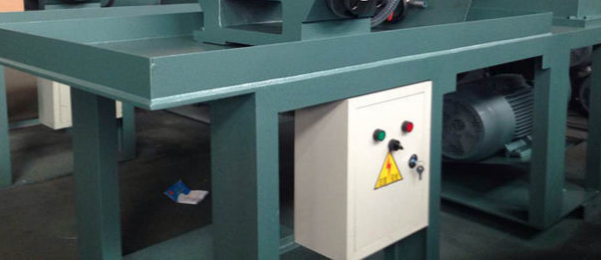

    3. Machine photos
