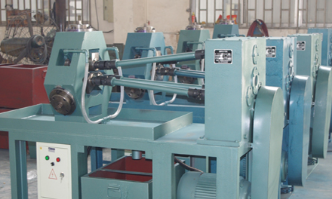

    DELLOK Embedded Tube Finning Machine

    Ask Lasest Price
    Brand Name : DELLOK
    Model Number : Reliance-1518(TYPE A)
    Certification : CE. ISO,EN10204. 3.1 Cert.
    Price : N/A Contact us for details
    Payment Terms : L/C, T/T Contact us for details
    Supply Ability : 60000 meters month
    Delivery Time : Ex-work within ~2.5 months on receipt of deposits or to be discussed.
    • Product Details
    • Company Profile

    DELLOK Embedded Tube Finning Machine

    Embedded Tube Finning Machine


    Groover of Embedded G Fin Machine , Fluted Knife of Helicoidal Groove Fin Tube Machine

    All groovers and accessories are designed by ourseves and please do not hesitate to contact us if any doubts.


    General description of G-Type finning machine.

    1. Embedded Machine Mode No: Reliance-1518(Our internal design No.)

    2. Embedded Machine Power Output: 380V/50HZ (Chinese Standard).

    3. The motors of export embedded finning machine are supplied upon clients’ requests.


    Quick Details

    Name

    Embedded Fin Tube Machine

    Brand/Mode No

    Reliance/ Mode No:1518

    Tube Material

    Seamless steel tubes(CS,SS,AS)

    Welded steel tubes(CS,SS)

    Copper/Brass/Brone

    Fins

    Material

    Alu.1060-O, Alu. 1060-H14

    Alu 1100-O, Alu. 1050

    Copper

    One complete set of Embedded Finning Machine consisting following:

    1. Finning head

    2. PLC controlled power box

    3. Finning input racks

    4. Finning output racks

    5. Technical know-how(Operation Manual in English)


    Dimensions Data are in Inches and specification upon your requests.

    Tube OD

    Fin Height

    Fin Thickness

    Fins per Pitch(Density)

    5/8

    3/8,1/2

    .015/.016/ .020

    6, 7, 8, 9, 10, 11, 12

    3/4

    5/8,1/2

    .015/.016/ .020

    6, 7, 8, 9, 10, 11, 12

    1

    5/8,1/2

    .015/.016/ .020

    6, 7, 8, 9, 10, 11, 12

    1 1/4

    5/8,1/2

    .015/.016/ .020

    6, 7, 8, 9, 10, 11, 12

    1 1/2

    5/8,1/2

    .015/.016/ .020

    6, 7, 8, 9, 10, 11, 12

    Please email us for more information.


    Competitive Advantage:

    1. We have more than 10,000 square meters workshop, including 10 finning machines, daily extrusion capacity up to 3,000 meters.

    2. The finning machines of Integral Low Fin Tubes are designed and assembled by ourselves and we can offer you finning machines and all accessories etc...

    3. The Integral Low Fins are rolled out of the tube surface to increase the tubes external surface area, without affecting any others dimension.

    4. Low Fins are very useful for tight condensers and exhibits high efficiency of heat transfer.

    5. Economical solutions of heat exchange problems of media with different heat conduction abilities or different current conditions.

    6. High chemical-, thermal- and mechanical resistance, suitable for rough operation conditions.


    Service After Sales

    1. Technical support

    2. Operation training at your site or in Reliance's Plant or both

    3. Information on maximun production criteria

    4. Reference charts

    5. Specifications for tube and fin strips.
