    DELLOK Seamless Copper Nickel Thickness 0.6mm Embedded Fin Tube

    Ask Lasest Price
    Brand Name : DELLOK
    Model Number : Type G fin tube
    Certification : CE. ISO,EN10204. 3.1 Cert.
    Price : N/A Contact us for details
    Payment Terms : L/C, T/T Contact us for details
    Supply Ability : 60000 meters month
    Delivery Time : Ex-work with 5 weeks after Order.
    • Product Details
    • Company Profile

    DELLOK Seamless Copper Nickel Thickness 0.6mm Embedded Fin Tube

    Seamless Copper Nickel Thickness 0.6mm Embedded Fin Tube


    Quick Details
    Condition:NewBrand Name:YONGHUI
    Place of Origin:ChinaMaterial:Carbon, stainless, and alloy steels.
    Fin Height:16.5 mm maxFin Thickness:generally 0.4mm ~0.6mm
    Fin Pitch:2.1 mm (12FPI) min.Tube Length:18,000mm max.
    Tube OD:50.8mm(2'') max.Production Capacity:Daily capacity up to 7,000 meters.
    Packing:Steel frame with plywoods or seaworthy wooden box.Marketing Type:New Production 2020
    Warranty:1 YearAfter Warranty Service:Online support
    Machinery Test Report:ProvidedCertification:CE. ISO,EN10204. 3.1 Cert.
    After-sales Services:Video technical support, Online supportShowroom Location:None
    Local Service Location:None

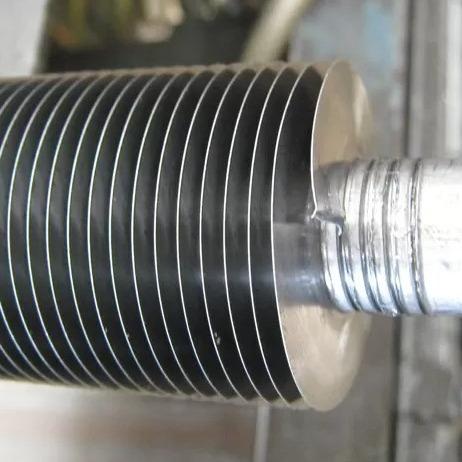

    Embedded finned tubes with stainless steel seamless tube and aluminum 1100 fins


    Introduction:

    The aluminum fin strip is tension wound and placed into a groove cut into the tube. The depth of this tube is about 0.4mm, and all the goods are Zinc or Aluminum metalized applied by an electro spray arc system coating on surface. The goods will be delivered when tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube. The desiccants are put into each package for continental transportation as well. Besides it applies to many areas such as Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants), High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids), The petroleum, chemical and petrochemical industries, The food processing and refrigeration industries, Natural gas treatment. And we provide the tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).


    Acceptance criteria:

    API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions.


    Specifications:

    Grooved G type Finned Tubes are combined with two different materials.


    Items

    General Materials

    Popular ASTM Materials

    Core Tube Material

    carbon steel, ow-alloy steel,

    stainless steel, brass, copper,

    cooper-nickel alloys,

    aluminum bronze, nickel alloys.

    1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

    2. Stainless Steel: TP304/304L,TP316/TP316L/316Ti,

    A789 S31803/S2205 etc...

    3. Copper:UNS12200/UNS14200/UNS70600,

    CuNi70/30,CuNi 90/10

    Fins Material

    1. Aluminum

    2. Copper.

    1. Aluminum(Alu.1100,Alu.1060)

    2. Copper.


    All dimensions are in Inches and specification upon your requests.
    Tube ODFin HeightFin ThicknessFins per Pitch(Density)
    5/83/8,1/2.015/.016/ .0206, 7, 8, 9, 10, 11, 12
    3/45/8,1/2.015/.016/ .0206, 7, 8, 9, 10, 11, 12
    15/8,1/2.015/.016/ .0206, 7, 8, 9, 10, 11, 12
    1 1/45/8,1/2.015/.016/ .0206, 7, 8, 9, 10, 11, 12
    1 1/25/8,1/2.015/.016/ .0206, 7, 8, 9, 10, 11, 12

    Please email us for more information.
