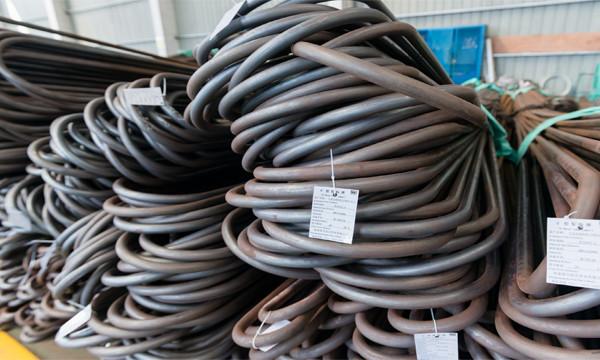

DELLOK Spiral Evaporator Carbon Steel SA210 U Bend Tube Exhaust Pipe

Dellok Yonghui Radiating Pipe Manufacturing Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap DELLOK Spiral Evaporator Carbon Steel SA210 U Bend Tube Exhaust Pipe from wholesalers

    Buy cheap DELLOK Spiral Evaporator Carbon Steel SA210 U Bend Tube Exhaust Pipe from wholesalers
    • Buy cheap DELLOK Spiral Evaporator Carbon Steel SA210 U Bend Tube Exhaust Pipe from wholesalers
    • Buy cheap DELLOK Spiral Evaporator Carbon Steel SA210 U Bend Tube Exhaust Pipe from wholesalers
    • Buy cheap DELLOK Spiral Evaporator Carbon Steel SA210 U Bend Tube Exhaust Pipe from wholesalers

    DELLOK Spiral Evaporator Carbon Steel SA210 U Bend Tube Exhaust Pipe

    Ask Lasest Price
    Brand Name : DELLOK
    Model Number : HFW
    Certification : CE. ISO,EN10204. 3.1 Cert.
    Price : N/A Contact us for details
    Payment Terms : L/C, T/T Contact us for details
    Supply Ability : 60000 meters month
    Delivery Time : Ex-work within 1 month on recepit of order.
    • Product Details
    • Company Profile

    DELLOK Spiral Evaporator Carbon Steel SA210 U Bend Tube Exhaust Pipe

    Spiral Evaporator Carbon Steel SA210 U Bend Exhaust Pipe


    Product Details
    Material:Carbon Steel , Alloy Steel, Heat Resistant Steel,
    Stainless Steel etc.
    Tube details:Tube OD: 19mm min.
    Tube Length: 18 meters max.
    Fin Height: 32 mm max.
    Fin Thickness: 0.8mm min
    Fin Pitch: min. 4 mm for solid fins & 3.3mm for serrated fins.
    Production Capacity:Daily production capacity up to 40 tons;
    HFW Fin type:solid plain and serrated.

    U Bent Welded Spiral Evaporator Tube , SA210 Gr. C SMLS Carbon Steel Tube


    Detail:

    High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.


    Introduction:
    High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using high frequency resistance welding technique. All of them are outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form. Its suits various area such as The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….

    We produce both solid plain and serrated helical welded steel finned tube. And also, all spiral welding tubes could be bent in the middle or at the end of fin tubes, we call it Hairpin tubes.


    Check:
    Visual check:
    Un-welded parts of fin, fin damage after fining, copper pollution, tears, wrap etc…
    Dimensional check:
    Fin height, fin spacing, fin inclination, fin corrugation, length of finned & un-finned portion etc…
    Bending check:
    Ovality, thickness and area reduction.


    Tube End Finish:
    Bevel @ (30°~35°)

    Bevel Root Size
    0.5mm~1.5mm

    Delivery condition
    Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of helical welded tubes.

    Documentation:
    It shall include QAP, WPS, PQR& WPQ, raw materials mill certificates, inspection and test samples results and warranty certificate of manufacturer.


    Specifications:
    A wide range of fin and tube materials could be combinations are available.


    ItemsGeneral MaterialsPopular ASTM Materials
    Core Tube Material

    Carbon Steel , Alloy Steel, Heat Resistant Steel,

    Stainless Steel etc.

    10#,20#,15CrMo,Cr5Mo,Cr9Mo,1Cr18Ni9Ti,0Cr18Ni9, 00Cr17Ni14Mo2,SA106B,SA106C, SA192, SA179,

    SA178,SA214, SA210-A1, SA210-C,TP304/304L/304H, TP409/410,TP316/316L,TP321/321L,TP347H,T11,T22,T91,etc.

    SA210 Gr. C SMLS

    Fins Material

    Carbon Steel , Alloy Steel, Heat Resistant Steel,

    Stainless Steel etc.

    Q235-BF,08F,08AL, 1Cr18Ni9Ti, 0Cr13, 1Cr13, 0Cr18Ni9, 09CrCuSb, CS,A1008-B,SPHC, SPCC, TP304/304L,TP316/316L,TP321/321L,etc.

    Dimensions Data Sheet We Can Supply.

    Solid Helical Steel Fin Tubes Fabrication RangeSolid fins(mm)Serrated fins
    MinMaxMinMax
    Tube OD(mm)1921919219
    Fin Height(mm)826832
    Fin Thickness(mm)0.82.811.6
    Fins Density(mm)4(250FPM)203.3(303FPM)20
    Tube Length(mm)N/A18000N/A18000

    Additional supply range :

    (1) Tube swaging process for joint of 2 tubes.

    (2) Spacer rings (material: steel) are available.

    (3) One side is solid plain fins and the other is serrated fins, 2 fin types on same tube.


    Competitive Advantage:

    1. We have more than 10,000 square meters workshop, including 4 ERW high Frequency welding fining lines, daily production capacity around 40 Tons;
    2. Our quality assurance plan for High Frequency Welding Spiral Steel Tubes. (2.1) Raw material control for both plain tubes and fins. (2.2) In process control with reports,as WPS, PQR&WPQ; weld deposition efficiency test before fabrication, Non-destructive test and tensile test etc. (2.3) Final inspection control with reports (Visual and dimensional check etc…).
    3. The High Frequency Resistance Welded Fin Tube is integrally extended for the max surface area to achieve efficiency. The heat transfer ratio of high frequency welding fin tube is about 8~9 times higher than other plain tubes.
    4. This Welded Helical Fin Tubes is a singular integral unit, eliminating heat contact resistance and losses. Generally tube side temperature up to 800 degree for stainess steel fins; Low carbon steels, withstanding up to 475 degree is the most common choice.
