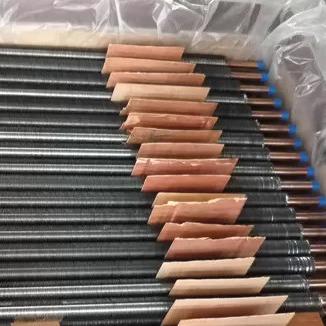

    DELLOK Condenser Copper Aluminum Alu1060 16mm Square Fin Tube

    Ask Lasest Price
    Brand Name : DELLOK
    Model Number : KL/KLM TYPE
    Certification : CE. ISO,EN10204. 3.1 Cert.
    Price : N/A Contact us for details
    Payment Terms : L/C, T/T Contact us for details
    Supply Ability : 60000 meters month
    Delivery Time : Ex-work with 1 month on receipt of order.
    • Product Details
    • Company Profile

    DELLOK Condenser Copper Aluminum Alu1060 16mm Square Fin Tube

    Condenser Copper Aluminum Alu1060 16mm Square Fin Tube


    C12200 / TP2 Cooper Tube , OD15.88X1.24WT Tension Wrapped L Type Cooper Condenser Tube


    ASTM B111/ B111M : Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock


    Introduction:

    The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface. The accessories with this fin are Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).


    Quick Details
    Condition:NewBrand Name:YONGHUI
    Place of Origin:ChinaMaterial:Aluminum & Copper.
    Fin Height16.5 mm max.Fin Pitch2.1 mm (12FPI) min.
    Fin Thicknessgenerally 0.4mm ~0.6mmTube Length:18,000mm max.
    Tube OD:16mm Min~50.8mm max.Production Capacity:Daily capacity up to 5000 meters;
    Fin type:Solid plainMarketing Type:New Production 2020
    Warranty:1 YearAfter Warranty Service:Online support
    Machinery Test Report:ProvidedCertification:CE. ISO,EN10204. 3.1 Cert.
    After-sales Services:Video technical support, Online supportPacking:Steel frame with plywoods or seaworthy wooden box.
    Local Service Location:NoneShowroom Location:None

    Packing:

    Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating. The desiccants are put into each package for continental transportation as well.


    Acceptance Criteria:

    API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).

    Applications:

    The common application fields are:

    Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);

    High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);

    The petroleum, chemical and petrochemical industries;

    The food processing and refrigeration industries;

    Natural gas treatment;


    Specifications:

    L Type Tension Wound Tube is combined with two different materials.


    ItemsGeneral MaterialsPopular ASTM Materials
    Core Tube MaterialCarbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.

    1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

    2. Stainless Steel: TP304/304L,TP316/TP316L

    3. Copper:UNS12200/UNS14200/UNS70600,

    CuNi70/30,CuNi 90/10

    4. Titanium: B338 Gr 2

    Fins MaterialAluminum & Copper.

    1. Aluminum(Alu.1100,Alu.1060)

    2. Copper.


    All dimensions are in Inches and specification upon your requests.
    Tube ODFin HeightFin ThicknessFins per Pitch
    5/83/8,1/2.015/.016/ .0206, 7, 8, 9, 10, 11, 12
    3/45/8,1/2.015/.016/ .0206, 7, 8, 9, 10, 11, 12
    15/8,1/2.015/.016/ .0206, 7, 8, 9, 10, 11, 12
    1 1/45/8,1/2.015/.016/ .0206, 7, 8, 9, 10, 11, 12
    1 1/25/8,1/2.015/.016/ .0206, 7, 8, 9, 10, 11, 12
    Pease email us for more information.

    Competitive Advantage:

    1. We have more than 10,000 square meters workshop, including 7 finning machines, daily production capacity up to 5,000 meters.
    2. The finning machines are designed and assembled by ourselves (Reliance) and we can offer you finning machines and all accessories etc...
    3. This method of manufacturing L tension type enables us to place the finning on a very thin-walled tube with is particularly desirable when using high value alloys (titanium, stainless, copper, nickel).The tube can withstand a temperature of up to 150°C without the risk of atmospheric corrosion or thermal stress.
    4. L TYPE fin tubes provide contact area between the fin strip and the tubes surface and protect the tube wall from atmosphere corrosion. This L TYPE design is much economical than LL, KL, even G-embedded type.

    Our Service:

    1. Inquiry-Professional quotation, or send inquiry item more details

    2. Confirm the price, lead time, payment term etc

    3. Proforma Invoice send or online

    4. Make the samples according to your request, send you photos or samples, arrange the production

    5. Send the production line photos Confirm the estimated delivery time again.

    6. End Production-Mass production products photos and samples will send to you for approval.

    7. Inform the tracking number and check the status for clients

    8. Order can be say "finish" when you receive the goods and satisfy with them

    9. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better
