Plate Heat Exchanger Ideal Instrument For Exceptional Heat Transfer Efficacy

Ask Lasest Price
Brand Name :	DELLOK Yonghui
Model Number :	Plate And Shell Heat Exchanger
Certification :	ISO9001
Price :	>= 250USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	＞1 SET per Day
Delivery Time :	1-3weeks

Add to Cart

Product Details
Company Profile

Plate Heat Exchanger Ideal Instrument For Exceptional Heat Transfer Efficacy

^{DELLOK YONGHUI Plate Heat Exchanger: The Ideal Instrument for
Exceptional Heat Transfer Efficacy}

Introduction

^{The plate and shell heat exchanger represents an innovative and
versatile solution in the field of heat transfer technology.}

^{This type of heat exchanger is constructed with a set of thin,
stamped plates that are assembled in a shell. The plates are
designed with specific patterns and grooves that not only create
channels for the fluid flow but also promote efficient heat
exchange. The fluids, one hot and one cold, are directed through
these channels in a counter-current or cross-flow manner.}

^{The laser half-welded plate heat exchanger consists of alternating
welded channels and conventional flow channels. Two plates are
welded 180 degrees upside down to form a plate group, forming a
welded runner; each plate group is sealed with a gasket, forming a
removable conventional runner. The sensitive medium flows through
the welded flow channel and the regular medium flows through the
regular flow channel for heat exchange.}

^{Laser half-welded plate heat exchanger is especially suitable for
the evaporation and condensation of refrigerants such as ammonia
and Freon, and it is also an ideal heat exchange equipment for the
chemical industry and the general process heat exchange medium that
produces corrosion to the gasket.}

SPECIFICATION PARAMETER OF TYPE A SERIES

SELECTION CONDITIONS

^{Heat exchanger selection is very important,usually need to know the
above parameters,if you are not clear about the conditions of use,
please contact us, we will confirm the selection parameters with
you.}

^{According to the application parameters, we use software to select
the type of heat exchanger you need.}

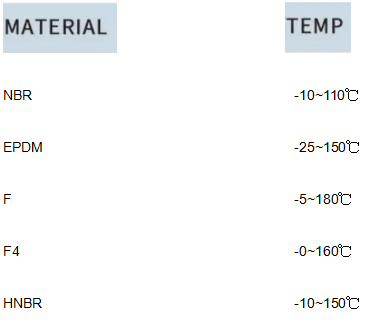

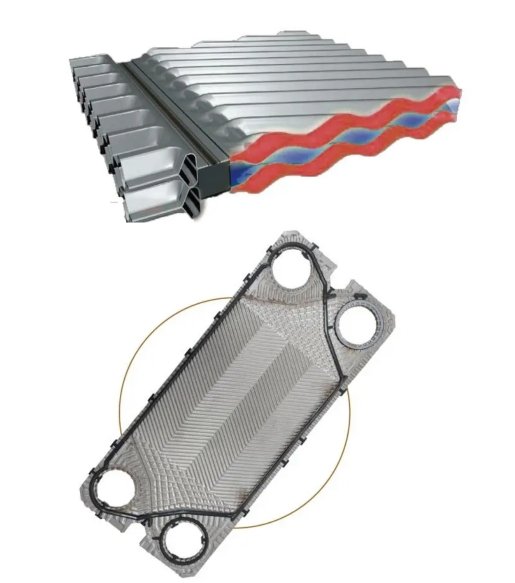

ACCESSORIES-PLATES

PECULIARITY

Product Advantages

01HIGH HEAT TRANSFER COEFFICIENT

^{When the flowing medium in the plate group is low Reynolds number,
turbulence can be formed, and the smooth plate surface is easy to
generate dirt.}

02HIGH HEAT RECOVERY

^{The heat transfer temperature difference is very low, which is very
suitable for the recovery of low energy. The rate can be as high as
about 90%.}

03LOW RETENTION

^{Small flow path and small retention.Superior in handling
heat-sensitive materials}

04COMPACT STRUCTURE

^{Occupies less space. Under the same heat exchange conditions, the
floor area of the plate heat exchanger is only 1/3-1/4 of the tube
and shell heat exchanger. Disassembly does not require additional
maintenance space.}

05EASY MAINTENANCE

^{The plate design has no dead corner area, and can be cleaned
chemically without disassembly.}

FAQ:

^{Q1: How does the temperature difference affect the performance of a
plate heat exchanger?}

^{A: A larger temperature difference between the hot and cold fluids
generally leads to a higher heat transfer rate. However, extreme
temperature differences may cause thermal stress on the plates and
gaskets, so it is important to operate within the recommended
temperature range for the particular exchanger.}

^{Q2: Are plate heat exchangers energy-efficient?}

^{A: Yes, they are highly energy-efficient due to their high heat
transfer coefficients. This means that less energy is required to
achieve the desired heat transfer compared to some other types of
heat exchangers, resulting in potential cost savings in heating,
cooling, or other thermal processes.}
